Continuous Extruded Profile
Material & Compound Specifications
Polymer:Nitrile (NBR)
Hardness:70 Shore A (Standard)
HSN Code:40070090
GST Rate:18% (Statutory)
Tensile Strength:≥ 10.0 MPa
Elongation at Break:≥ 250%
Temp Range:-30°C to +110°C
Extrusion Standard:ISO 3302-1 Class E1
IN STOCK · IMMEDIATE DISPATCH

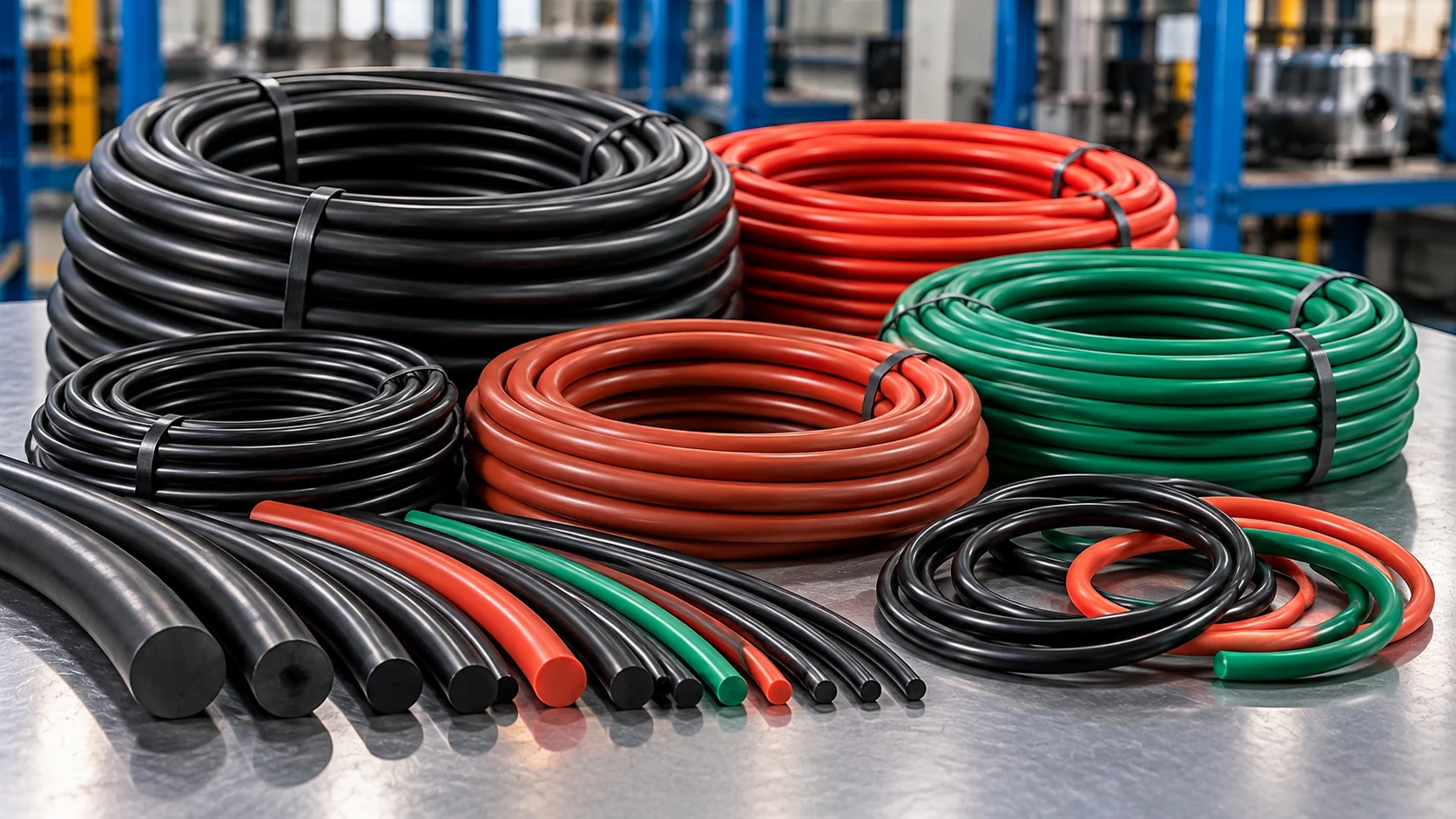

Continuous NBR Rubber Cord
Continuous round extruded Nitrile elastomer cord for spliced O-rings, static gland packing, and fluid containment.
(46 sizes available below)
Metres
1 – 20 Metres
Base Price (0% OFF)
20.001 – 50 Metres
10% Volume Discount
Over 50 Metres
20% Volume Discount
Base Rate per Metre:
₹6.00/m
Applied Discount:
0% OFF
Effective Rate:
₹6.00/m
Subtotal:
₹60.00
Order 11 more metres to unlock 10% volume discount!
🚚 Estimated delivery: 1 week
·
Free shipping above ₹2,000
Complete NBR Cord Size & Volume Price Reference (46 Diameters)
Select any diameter below to immediately load it into the interactive configurator above.
| Nominal Size | Metric Diameter | Material & Hardness | Base Rate (≤20m) | 10% Tier (21-50m) | 20% Tier (>50m) | Select |
|---|---|---|---|---|---|---|
| 1 mm | 1.0 mm | NBR (55-90 Shore A) | ₹5.00 | ₹4.50 | ₹4.00 | |
| 1.5 mm | 1.5 mm | NBR (55-90 Shore A) | ₹5.00 | ₹4.50 | ₹4.00 | |
| 1.78 mm | 1.78 mm | NBR (55-90 Shore A) | ₹5.00 | ₹4.50 | ₹4.00 | |
| 2 mm | 2.0 mm | NBR (55-90 Shore A) | ₹6.00 | ₹5.40 | ₹4.80 | |
| 2.5 mm | 2.5 mm | NBR (55-90 Shore A) | ₹7.00 | ₹6.30 | ₹5.60 | |
| 2.62 mm | 2.62 mm | NBR (55-90 Shore A) | ₹7.00 | ₹6.30 | ₹5.60 | |
| 3 mm | 3.0 mm | NBR (55-90 Shore A) | ₹8.00 | ₹7.20 | ₹6.40 | |
| 3.53 mm | 3.53 mm | NBR (55-90 Shore A) | ₹10.00 | ₹9.00 | ₹8.00 | |
| 4 mm | 4.0 mm | NBR (55-90 Shore A) | ₹13.00 | ₹11.70 | ₹10.40 | |
| 4.5 mm | 4.5 mm | NBR (55-90 Shore A) | ₹16.00 | ₹14.40 | ₹12.80 | |
| 5 mm | 5.0 mm | NBR (55-90 Shore A) | ₹20.00 | ₹18.00 | ₹16.00 | |
| 5.3 mm | 5.3 mm | NBR (55-90 Shore A) | ₹23.00 | ₹20.70 | ₹18.40 | |
| 5.5 mm | 5.5 mm | NBR (55-90 Shore A) | ₹24.00 | ₹21.60 | ₹19.20 | |
| 5.7 mm | 5.7 mm | NBR (55-90 Shore A) | ₹26.00 | ₹23.40 | ₹20.80 | |
| 6 mm | 6.0 mm | NBR (55-90 Shore A) | ₹29.00 | ₹26.10 | ₹23.20 | |
| 6.35 mm | 6.35 mm | NBR (55-90 Shore A) | ₹32.00 | ₹28.80 | ₹25.60 | |
| 6.5 mm | 6.5 mm | NBR (55-90 Shore A) | ₹34.00 | ₹30.60 | ₹27.20 | |
| 7 mm | 7.0 mm | NBR (55-90 Shore A) | ₹39.00 | ₹35.10 | ₹31.20 | |
| 7.5 mm | 7.5 mm | NBR (55-90 Shore A) | ₹45.00 | ₹40.50 | ₹36.00 | |
| 8 mm | 8.0 mm | NBR (55-90 Shore A) | ₹51.00 | ₹45.90 | ₹40.80 | |
| 8.4 mm | 8.4 mm | NBR (55-90 Shore A) | ₹56.00 | ₹50.40 | ₹44.80 | |
| 8.5 mm | 8.5 mm | NBR (55-90 Shore A) | ₹57.00 | ₹51.30 | ₹45.60 | |
| 9 mm | 9.0 mm | NBR (55-90 Shore A) | ₹64.00 | ₹57.60 | ₹51.20 | |
| 9.53 mm | 9.53 mm | NBR (55-90 Shore A) | ₹72.00 | ₹64.80 | ₹57.60 | |
| 10 mm | 10.0 mm | NBR (55-90 Shore A) | ₹79.00 | ₹71.10 | ₹63.20 | |
| 11 mm | 11.0 mm | NBR (55-90 Shore A) | ₹95.00 | ₹85.50 | ₹76.00 | |
| 12 mm | 12.0 mm | NBR (55-90 Shore A) | ₹114.00 | ₹102.60 | ₹91.20 | |
| 12.7 mm | 12.7 mm | NBR (55-90 Shore A) | ₹128.00 | ₹115.20 | ₹102.40 | |
| 13 mm | 13.0 mm | NBR (55-90 Shore A) | ₹133.00 | ₹119.70 | ₹106.40 | |
| 14 mm | 14.0 mm | NBR (55-90 Shore A) | ₹155.00 | ₹139.50 | ₹124.00 | |
| 15 mm | 15.0 mm | NBR (55-90 Shore A) | ₹178.00 | ₹160.20 | ₹142.40 | |
| 16 mm | 16.0 mm | NBR (55-90 Shore A) | ₹202.00 | ₹181.80 | ₹161.60 | |
| 17 mm | 17.0 mm | NBR (55-90 Shore A) | ₹229.00 | ₹206.10 | ₹183.20 | |
| 18 mm | 18.0 mm | NBR (55-90 Shore A) | ₹256.00 | ₹230.40 | ₹204.80 | |
| 19 mm | 19.0 mm | NBR (55-90 Shore A) | ₹285.00 | ₹256.50 | ₹228.00 | |
| 20 mm | 20.0 mm | NBR (55-90 Shore A) | ₹316.00 | ₹284.40 | ₹252.80 | |
| 21 mm | 21.0 mm | NBR (55-90 Shore A) | ₹348.00 | ₹313.20 | ₹278.40 | |
| 22 mm | 22.0 mm | NBR (55-90 Shore A) | ₹382.00 | ₹343.80 | ₹305.60 | |
| 23 mm | 23.0 mm | NBR (55-90 Shore A) | ₹418.00 | ₹376.20 | ₹334.40 | |
| 24 mm | 24.0 mm | NBR (55-90 Shore A) | ₹455.00 | ₹409.50 | ₹364.00 | |
| 25 mm | 25.0 mm | NBR (55-90 Shore A) | ₹493.00 | ₹443.70 | ₹394.40 | |
| 26 mm | 26.0 mm | NBR (55-90 Shore A) | ₹534.00 | ₹480.60 | ₹427.20 | |
| 27 mm | 27.0 mm | NBR (55-90 Shore A) | ₹575.00 | ₹517.50 | ₹460.00 | |
| 28 mm | 28.0 mm | NBR (55-90 Shore A) | ₹619.00 | ₹557.10 | ₹495.20 | |
| 29 mm | 29.0 mm | NBR (55-90 Shore A) | ₹664.00 | ₹597.60 | ₹531.20 | |
| 30 mm | 30.0 mm | NBR (55-90 Shore A) | ₹711.00 | ₹639.90 | ₹568.80 |
